FTI-1000 Lab
Equipment
Comprehensive DC Measurement and Curve‑Tracing Platform Offering for Power and Wide‑Bandgap Device Engineering
The FTI-1000 Flexible is a compact DC characterization platform designed for medium-power Si and GaN devices. Delivering up to 1.2 kV and 100 A of programmable DC stimulus, it enables accurate extraction of static electrical parameters across a broad range of discrete packages.
Optimized for high-voltage leakage, breakdown, threshold voltage, and on-resistance measurements, the system provides stable and repeatable DC sourcing with precise measurement control. Its modular architecture allows scalable configuration while maintaining a small laboratory footprint.
Ideal for R&D labs, device qualification, and engineering validation environments, the FTI-1000 Flexible simplifies DC characterization without the overhead of full production ATE infrastructure.
Product Presentation

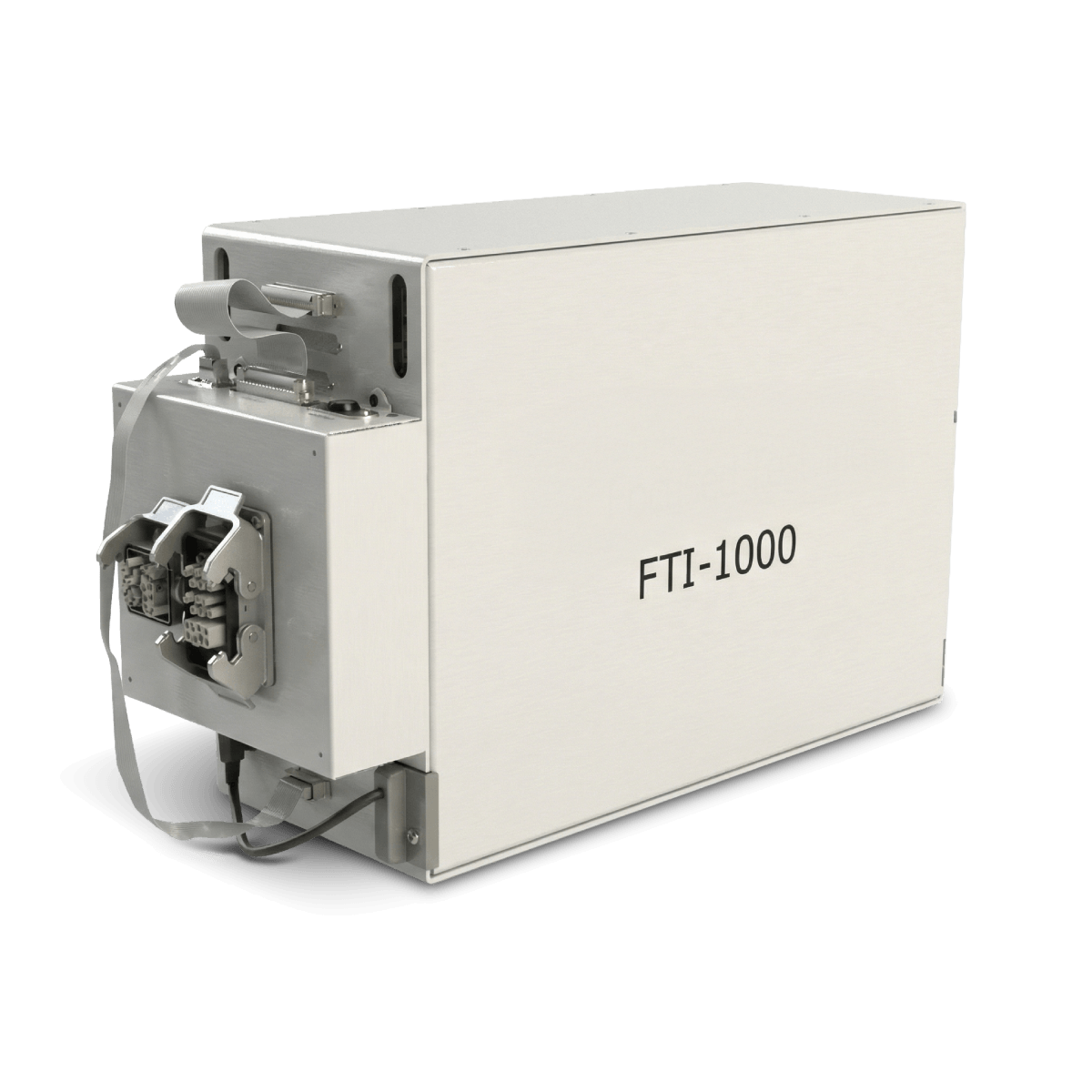

FTI‑1000 Lab is a streamlined DC‑only configuration designed for precise characterisation of power discrete devices and wide‑bandgap components. Providing up to 1.2 kV and 100 A capability, the system delivers accurate static measurements and high‑resolution curve‑tracing performance, making it ideal for laboratory workflows, device evaluation, and engineering development. Built on the modular FTI‑1000 architecture, the Lab configuration uses dedicated DC instrumentation—including high‑voltage and high‑current source modules, nano‑amp measurement, and flexible biasing—to support a wide range of IV sweeps and parametric tests without introducing AC or dynamic‑switching complexity. FTI Studio provides an intuitive interface for rapid setup, waveform capture, schmoo plotting, and test‑program creation, enabling engineers to move quickly from device bring‑up to complete characterisation.
FTI-1000 Lab

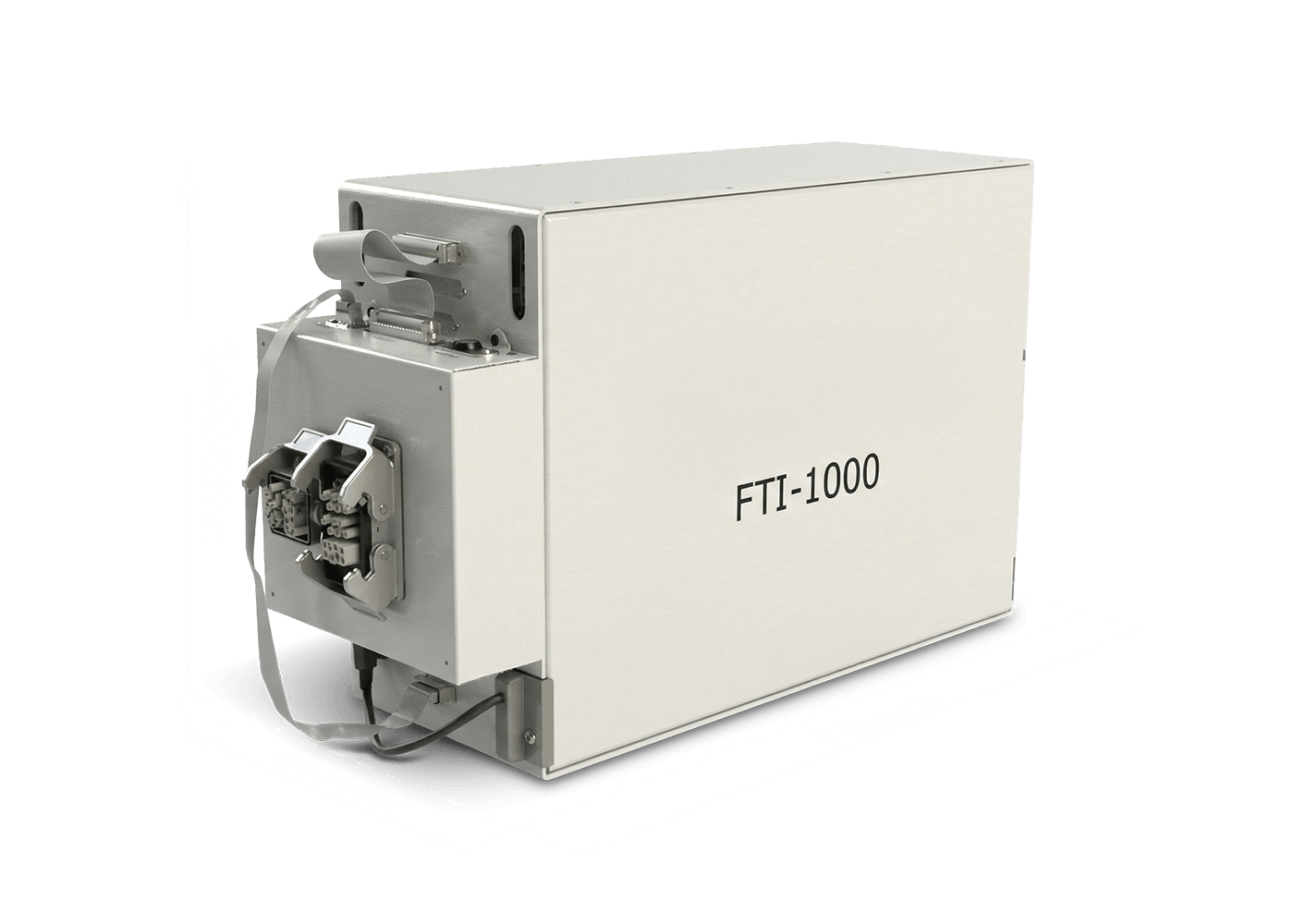

Dimensions
Power Supply: 345mm ⨯ 176mm ⨯ 103mm
Digital
DC Source
Misc.
More info
