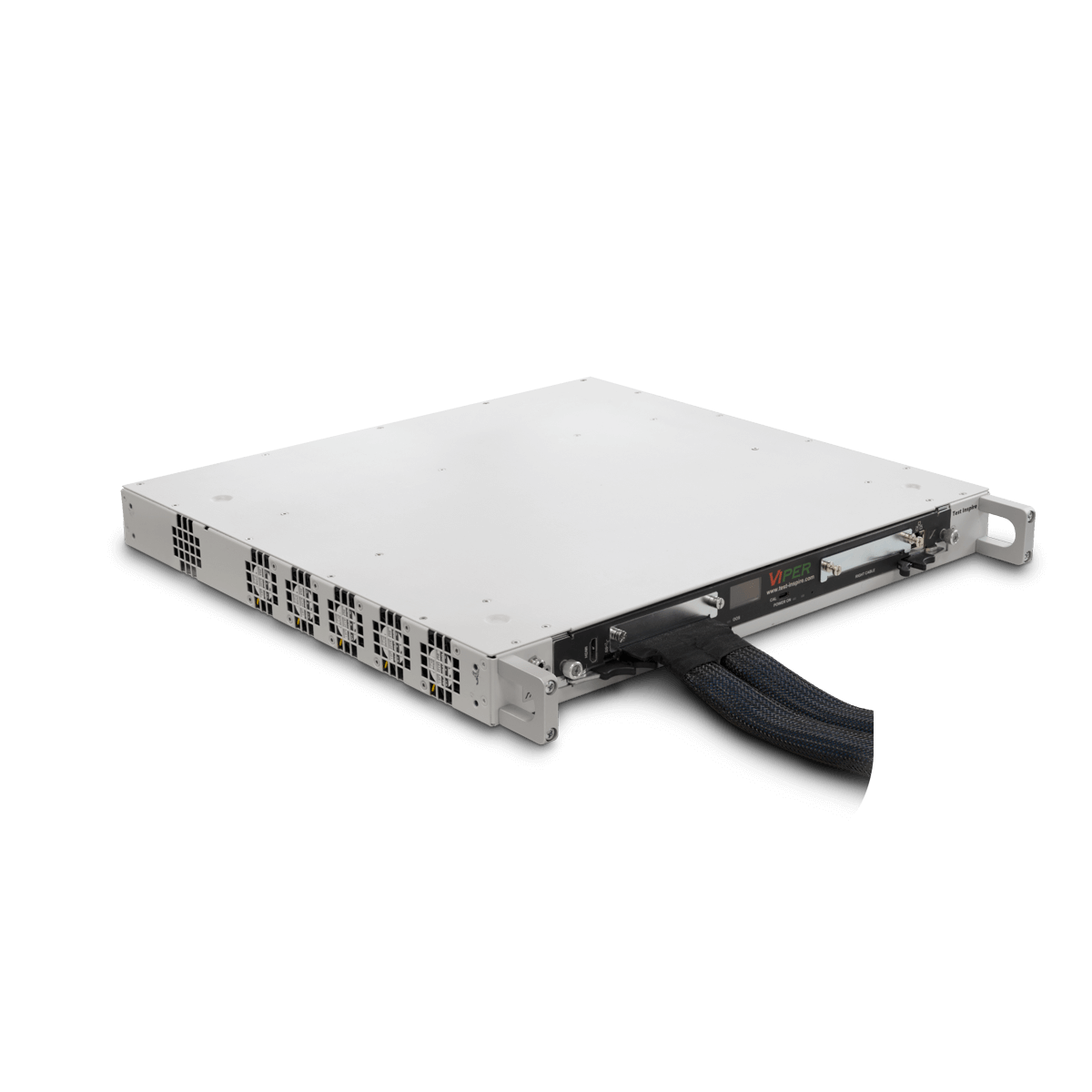

Viper
Equipment
Waveform Digitizer with automated Glitch and Transient detect
Reasons Why
VIPER embeds SW tools, calibration and diagnostics
VIPER analyses and detect DUT waveform Glitches and Transients
For characterization test benches and mass production test cells
Product Presentation
Viper is a massive parallel high speed Voltage measurement system
- 32 to 1000’s of channels
- Marks location in test program of extreme events
Requirement to measure Contact Resistance
- Current measurement is intrusive, requires path change from tester to DUT
- Voltage measurement can be added even on existing loadboard by adding wires/traces
New method to identify contact resistance issues by only measuring less intrusive Voltages
- Identify location in test program where/if excessive current is used
- Can be added to existing setups to debug issues
- No need to redesign interface boards / probe cards
FEATURES
Viper

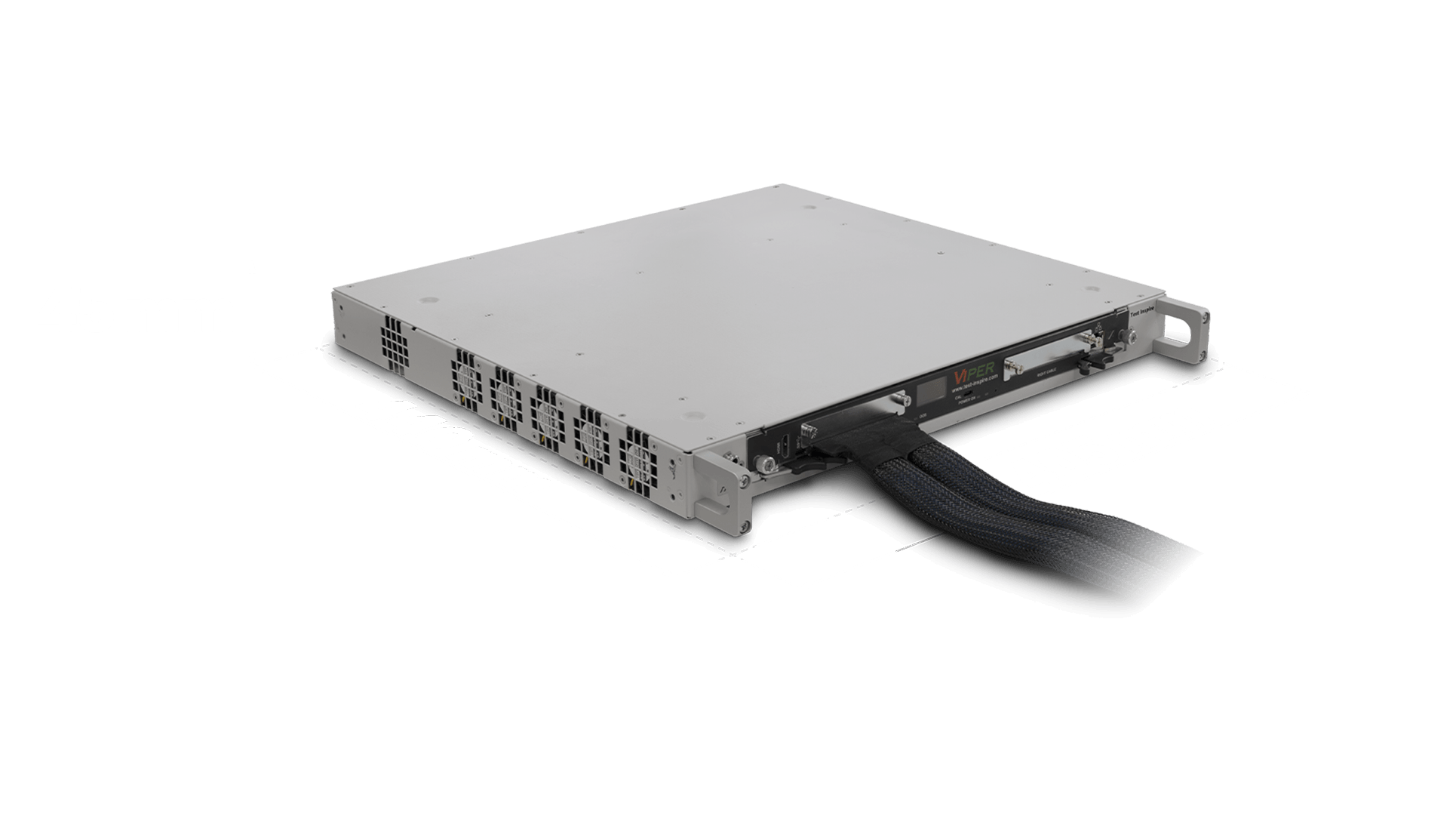

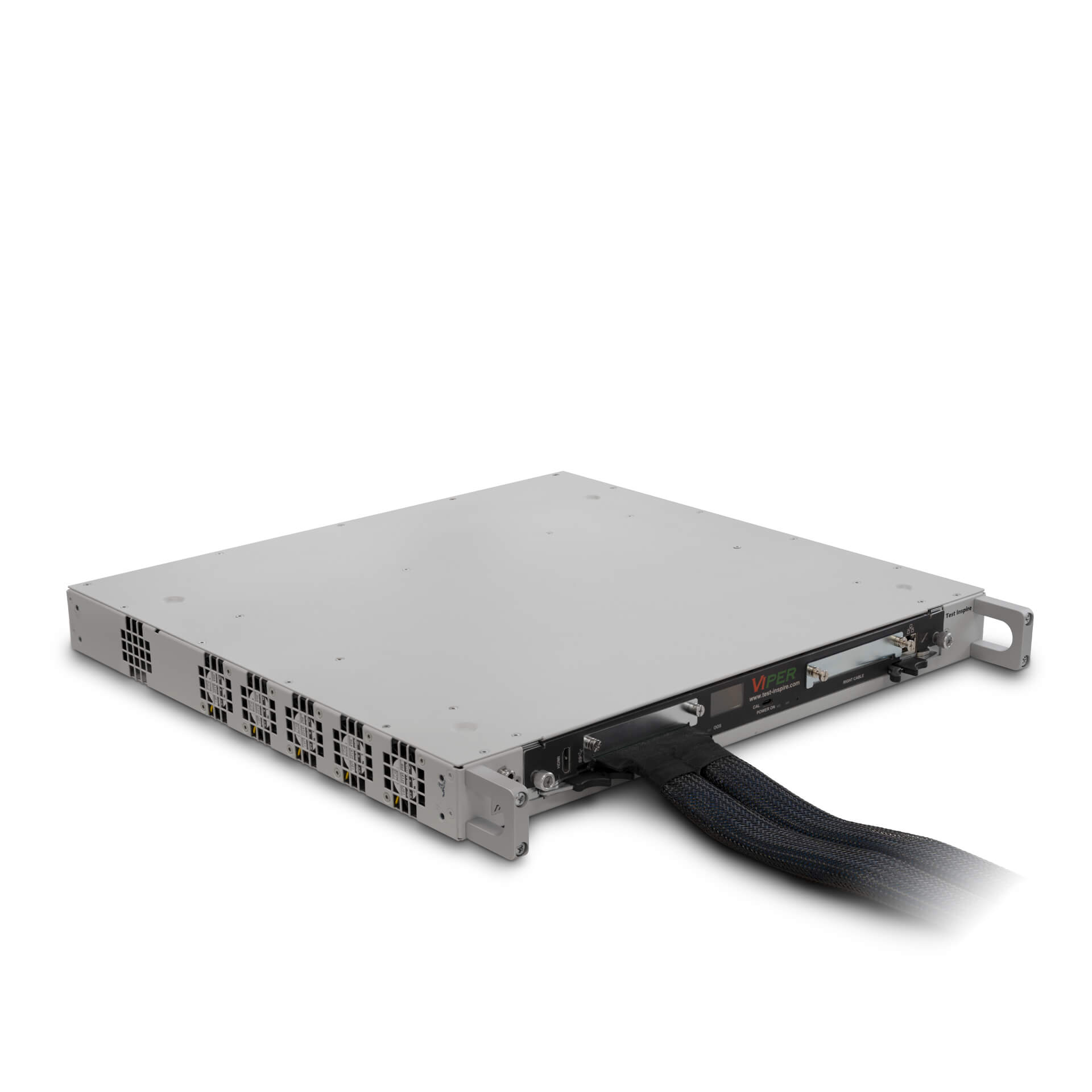

Dimensions
D⨯W⨯H
405mm x 440mm x 45mm
Measurements Instruments
AWG/TMS/Differential Voltage Meter
Up to 192 channels (6*32 channels waveform capture/digitizer)
Differential input with independent AGND
Programmable sample rate up to 100Msps
Up to 14 bits resolution
Independent ranges per channel 2 input ranges up to +-7.5V and +-75V
1GByte capture shared memory
Digital trigger per channel
Hardware Sync/trigger
Differential input with independent AGND
Programmable sample rate up to 100Msps
Up to 14 bits resolution
Independent ranges per channel 2 input ranges up to +-7.5V and +-75V
1GByte capture shared memory
Digital trigger per channel
Hardware Sync/trigger
